Schedio

Spartan's always had a small team, but that doesn't mean formalizing design isn't beneficial. T increase the efficiency and consistency of our designs at Spartan, I built a Vue component library and design system. It informed the design of our laptop interfaces, as well as much of our marketing design at the time. I named it Schedio, since Google Translate told me that's the Greek word for design (schédio, anyways), and Spartan likes Greek themes.

I read a lot of design guidelines before putting this together. Reading through them, I found Shopify's Polaris. I really like the approach used, so mine was influenced by it.

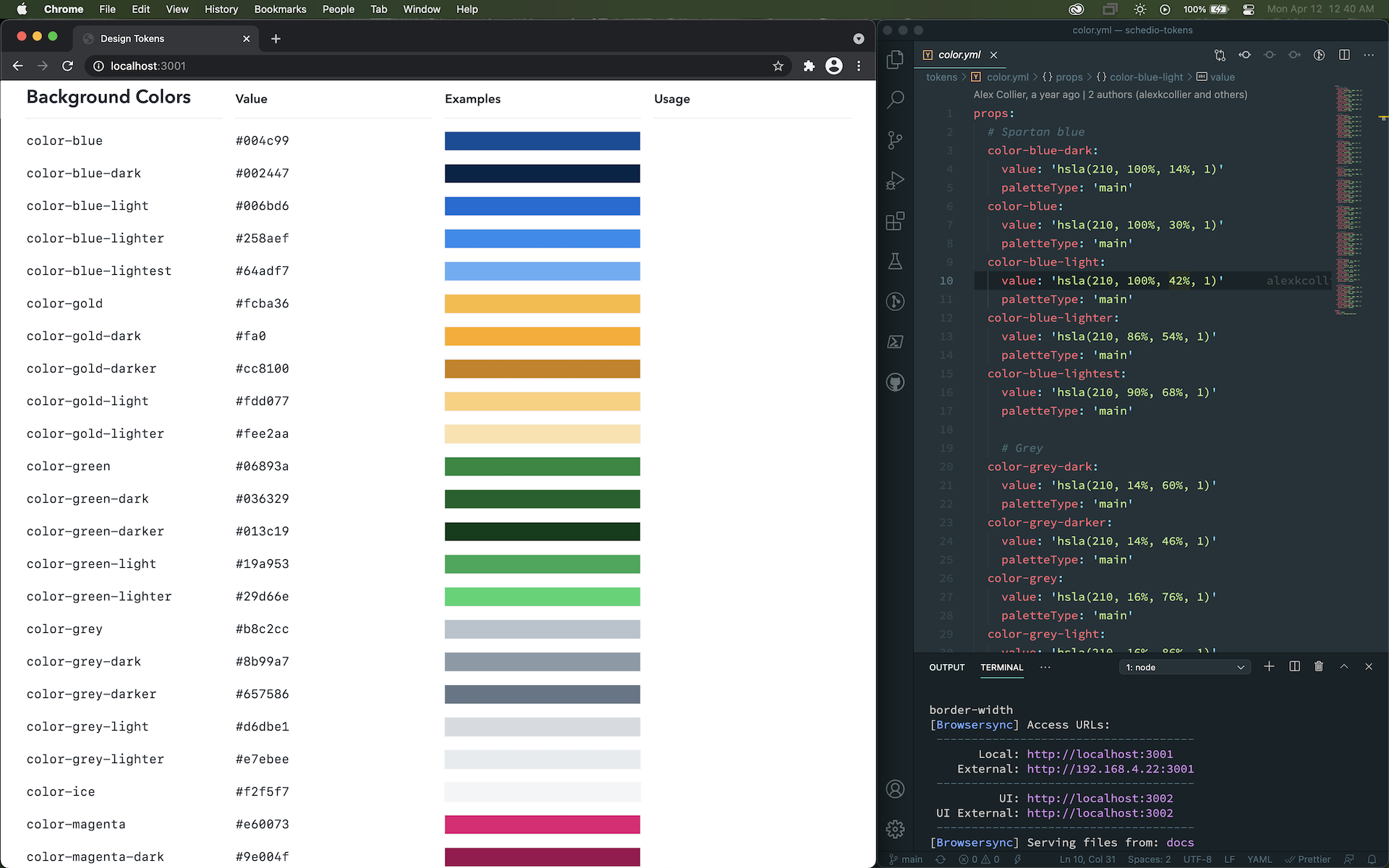

The first step in putting this together, was to determine its basic elements, like font, colors, spacing. I also planned to document and structure these elements as design tokens. Theo was incredibly useful for this. It's powerful export features came in handy when actually builing the component library.

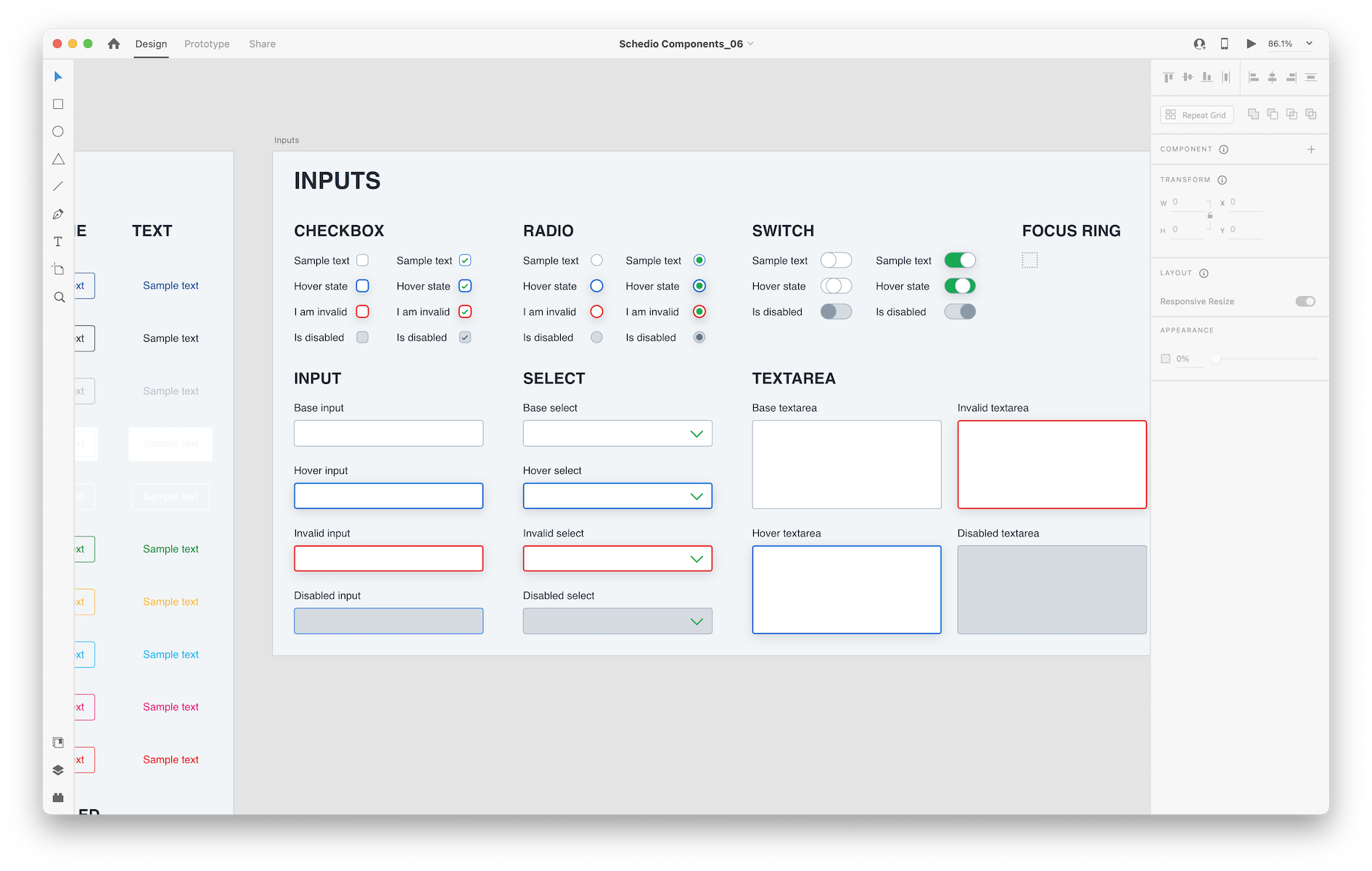

Some tokens, like transition easing and timing, are harder than others to work on without working on components. Once the basic tokens were done, it was time to move on to and component design. I started by generating static designs in XD (this was before component states were a thing). These were also used in future prototyping.

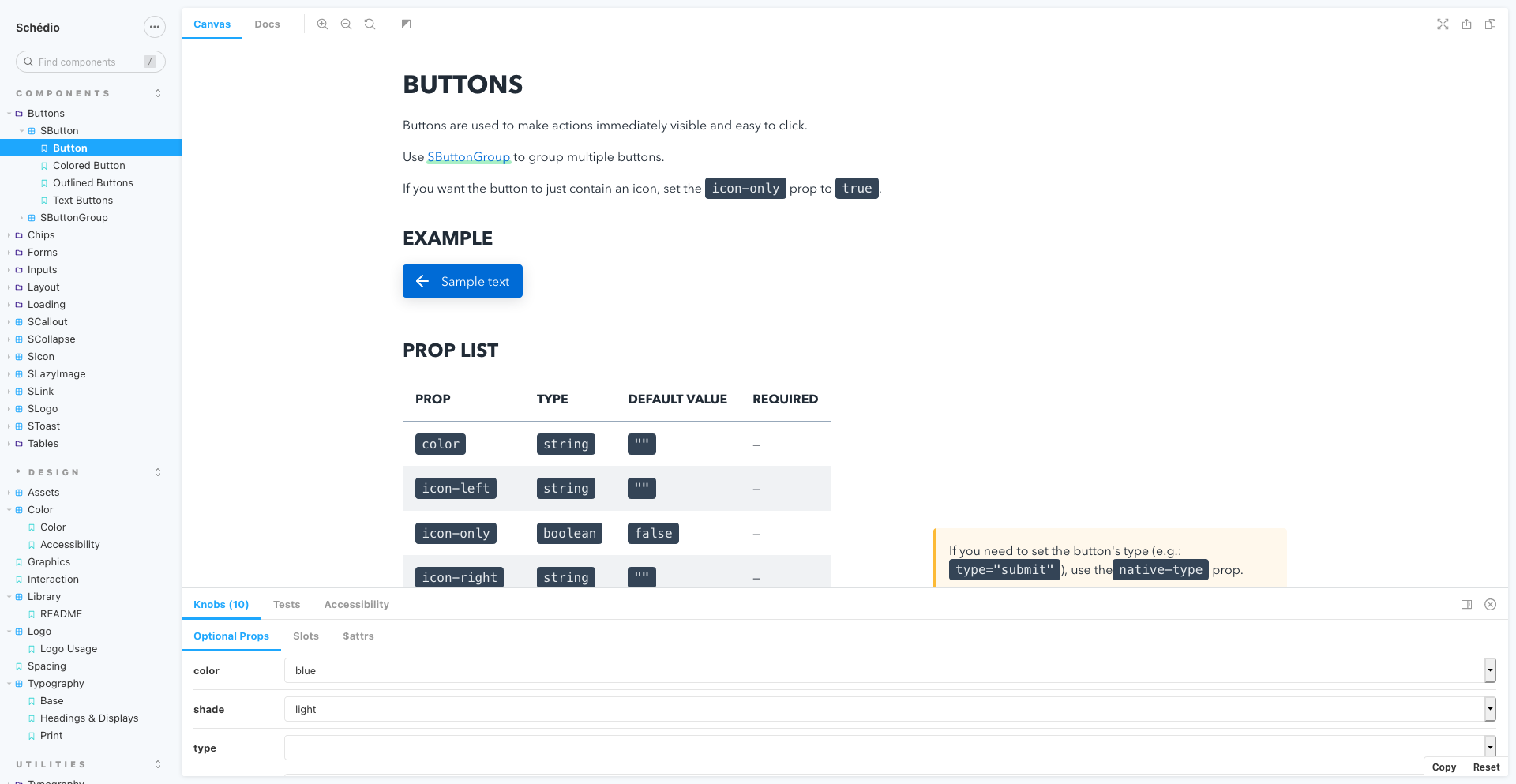

Storybook provided a great sandbox for development, and I bolted on some documentation to save time. I had to make some workarounds since I was developing in Vue, since some of the Storybook addons primarily supported React at the time. It wasn't too bad to get working though, and it was worth it, both in terms of how it let me work, and how it helped our Windows developer better understand my design intention.

Every component was designed to be WCAG 2.0 AA accessible. I used tests in Jest and Storybook to help enforce that during development.

I mentioned above that I bolted on design, and I truly mean that. Storybook isn't the best place for non-technical documentation, like "how to use a colour", or "this is our philosophy on interaction". But I needed to put it somehwere, and I didn't have the time or resources to build another site. I would definitely try and separate them more in the future. Given the small size of our team, however, it wasn't a big issue, and could be fixed as we scaled.

The outputs from Schedio were incredibly useful in supporting future product design. I used its components for customer-facing website, and some internal tools. The XD prototypes were reused as inputs for our product prototypes, and our Windows developer appreciated having this as a reference, even if he couldn't consume them.
